Howto Install Windows XP / Vista on Xen

Xen Logo This short guide describes how to install Windows XP or Windows 2003 Server on Xen. It provides an overview of the Debian Linux Etch installation, and detailed steps for installing and configuring Xen and starting the Windows XP or Windows 2003 Server installation.

Requirements

First you need to install Xen on Debian Etch:


sudo apt-get install xen-linux-system-2.6.18-4-xen-686 libc6-xen bridge-utils

Boot into the newly installed Xen enabled Linux kernel


sudo reboot

Then adjusted the network settings in /etc/xen/xend-config.sxp. Enabling the network bridge:


(network-script network-bridge)

Install Xen IO Emulation tools:


sudo apt-get install xen-ioemu-3.0.3-1

Create a directory for the virtual machine files e.g. /home/xen/domains/win01 and create a disk image for the virtual machine's primary disk.


mkdir /home/xen
mkdir /home/xen/domains
mkdir /home/xen/domains/win01
sudo dd if=/dev/zero of= /home/xen/domains/win01/disk.img bs=1M count=4096

Establish a Xen machine Configuration file (/etc/xen/win01.cfg) like this


kernel  = '/usr/lib/xen/boot/hvmloader'
builder = 'hvm'
memory  = '256'
device_model='/usr/lib/xen/bin/qemu-dm'

# Disks
disk    = [ 'file:/home/xen/domains/win01/disk.img,ioemu:hda,w',
            'file:/home/cc/iso-images/WindowsXP-SP2/image.iso,ioemu:hdc:cdrom,r' ]

# Hostname
name    = 'win01'

#  Networking
vif = ['type=ioemu, bridge=xenbr0']

# Behaviour
boot='d'
vnc=1
vncviewer=1
sdl=0

The ready to fire up the new machine and start the Windows installation in a vnc terminal.


xm create win01.cfg

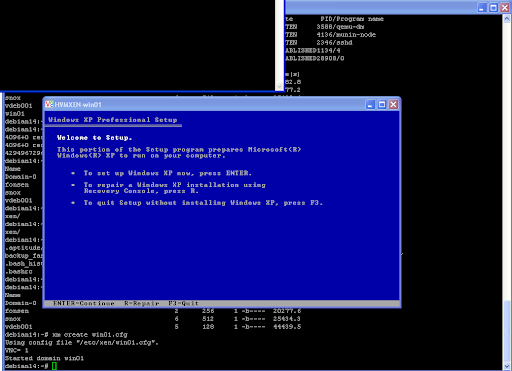

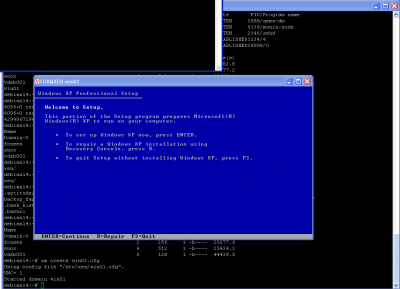

After the virtual machine is started - a VNC server port should be available on port 5900 at the Xen server's IP, e.g. 192.168.1.102 - A VNC XEN Client session is depicted here.

Xen Windows Install VNC

If an error like this shows up


Error: Device 0 (vif) could not be connected. Backend device not found.

You should check your that you have enabled the network bridge, "(network-script network-bridge)", in /etc/xen/xend-config.sxp and restarted the xen deamon by /etc/init.d/xend restart

For more on creating Xen virtual machines read this guide, which outlines the features of the xen-tools package.
